产品介绍

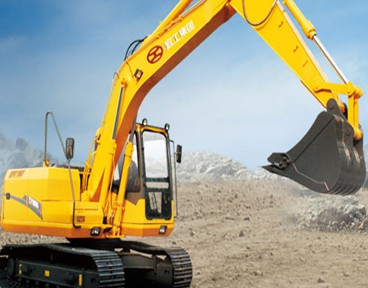

产品名称 EXCAVATORS
产品简介图
产品介绍



 EFCY85-8

Machine Weight

5800kg

Bucket Capacity

0.06-0.28m3

Engine

Type

Yanmar, 4 stroke, water cooling

Rated Power

39/2200kw/rpm

Max Torque

20.6/1400kgf·m/rpm

Hydraulic System

Type

Variable displacement piston pump×2 + Gear pump ×1

Pressure (Operation/Swing)

21.5Mpa

Rated Flow

55.0×2+35.6+9.9L/min

Working System

Swing Speed

10rmp

Travel Speed (Low/High)

2.2/4.0km/h

Bucket Digging Force

38.5KN

Arm Digging Force

31KN

Gradeability

70%

Dimension

Overall Length

5900mm

Overall Width

1920mm

Overall Height

2500mm

Width of Track Plate

400mm

Rear End Swing Radius

1650mm

Track Gauge

1500mm

Track Wheelbase

1990mm

Trailer Wheel

1×2

Support Wheel

5×2

Min. Ground Clearance

380mm

Dozer Blade(Width × Height)

1920mm×350mm

Fuel Tank Capacity

120L

Hydraulic Oil Tank Capacity

70L

Engine

Hydraulic system

1) Originally imported Japan Yanmar engine.
2)  Strong power, big torque reservation.
3) Low fuel consumption, low noise and high reliability.
4) The large area radiator of high efficiency ensures good heat balance enven under extreme hot environment.

1) The constant power system gives full play to the engine power and improves fuel economy.
2) The originally imported hydraulic parts have higher reliability and longer life.
3) Full hydraulic pilot control, more smooth operation.


Electric System

Cab

1) Quality electric element, durable and reliable.
2) Imported coupling parts, waterproof and anti-loose.
3) HIgh performance maintenance-free battery, safe and stable.

1) The ergonomics cab reduces fatigue and improves work efficiency.
2) Large power air conditioner, comfortable and reliable.
3) Movable front windshield, easy ventilation.

Structural Parts



1) X-frame, durable and reliable, good pass ability.
2) Reinforced working devices, applicable to worse conditions.



Note: The technical parameters, profile, and colors are subject to change without prior notice.
